What does CDLR mean?
CDLR means chain-driven live roller. Each driven roller is powered through chain and sprocket engagement, providing positive drive for heavier unit loads.
Chain Driven Live Roller Conveyors
Chain Driven Live Roller Conveyors.
CDLR (chain driven live roller) conveyors for medium and heavy duty loads, including straight, curve, spur, non-accumulating pallet, and pallet accumulating configurations.
Medium & Heavy Duty
Select Your Chain Driven Model.
CDLR, or chain driven live roller conveyor, is used for heavier loads requiring positive roller drive. Includes 22-series medium duty, 251-series heavy duty non-accumulating pallet conveyors, and 251-series pallet accumulating models.
22-Series — Medium Duty (2″ Rollers)
Model 22CRR
Medium Duty Chain Driven Live Roller
2″ roller chain driven straight. Positive drive for heavy medium-duty applications.
View Specs →
Model 22CRRCT
Chain Driven Live Roller Curve
2″ roller chain driven curve. 30°, 45°, 60° and 90°.
View Specs →
Model 22CRRCTS
Chain Driven Live Roller Spur
2″ roller chain driven spur for right-angle diversion.
View Specs →

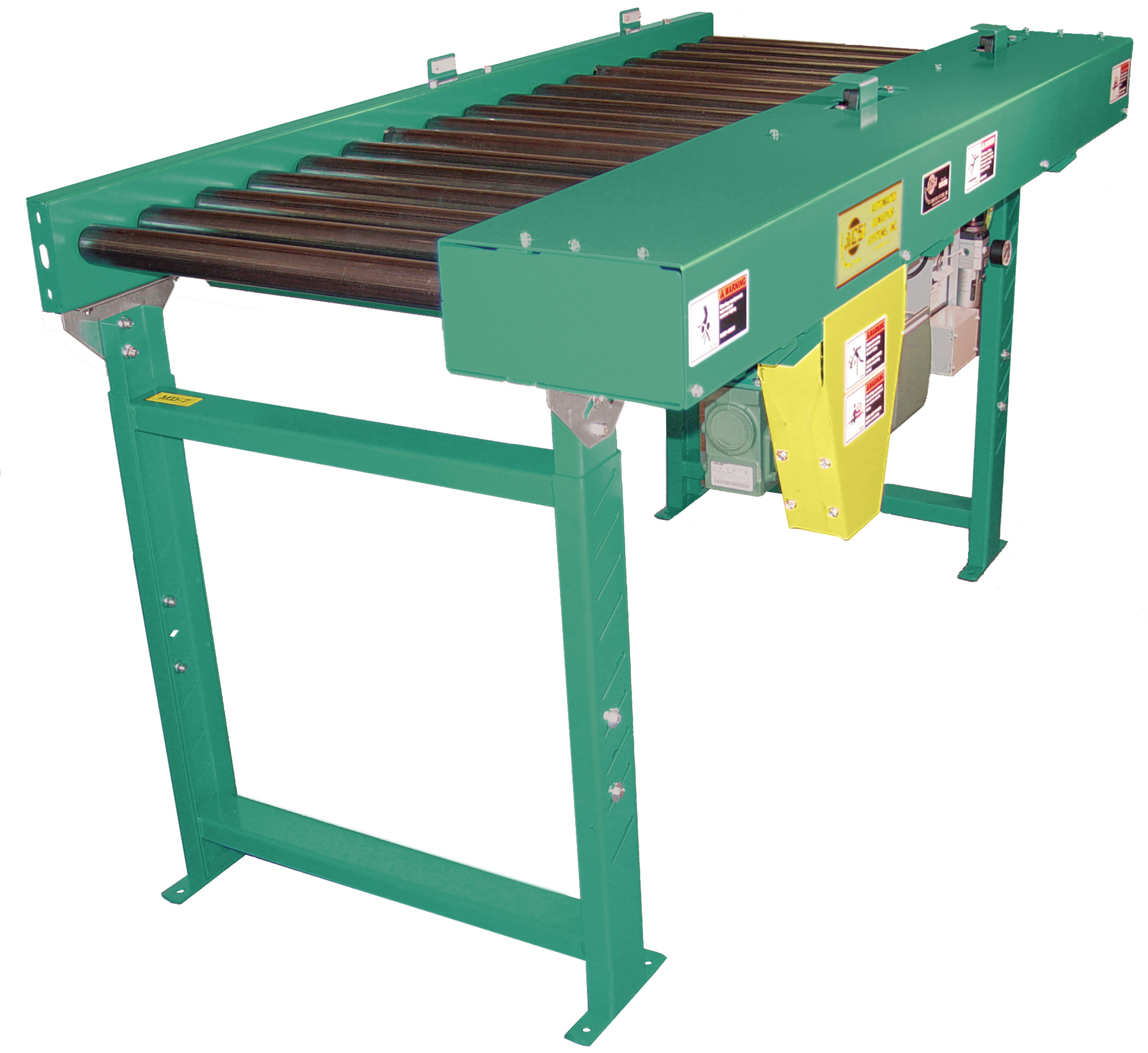

Model 22ACDE
Chain Driven Air Operated Accumulating
Medium duty chain driven with air operated photo eye controlled accumulation.
View Specs →251 / 350 Series — Heavy Duty Non-Accumulating Pallet Conveyors
Model 251CRR / 267CRR
251CRR / 267CRR – Heavy Duty Chain Driven Live Roller
Non-accumulating 251-series pallet conveyor for pallets, drums, oily conditions, and positive-drive applications.
View Specs →
Model 251CRR-3
251CRR-3 – Heavy Duty Chain Driven Live Roller
Non-accumulating 251-series pallet conveyor with 3″ roller centers for slip-sheet applications and pallets handled the hard way.
View Specs →
Model 251CRRC
251CRRC – Heavy Duty Chain Driven Live Roller Curve
Non-accumulating 251-series chain driven curve with side-mounted drive for pallet and drum conveying applications.
View Specs →
Model 251CRRCT
251CRRCT – Heavy Duty Chain Driven Tapered Roller Curve
Non-accumulating 251-series tapered roller curve for pallet and drum conveying applications.
View Specs →
Model 350CRR
350CRR – Heavy Duty Chain Driven Live Roller
Non-accumulating heavy-duty 350-series live roller conveyor for pallets, heavy drums, and positive drive.
View Specs →251-Series — Heavy Duty Pallet Accumulating Conveyors (2.5″ Rollers)

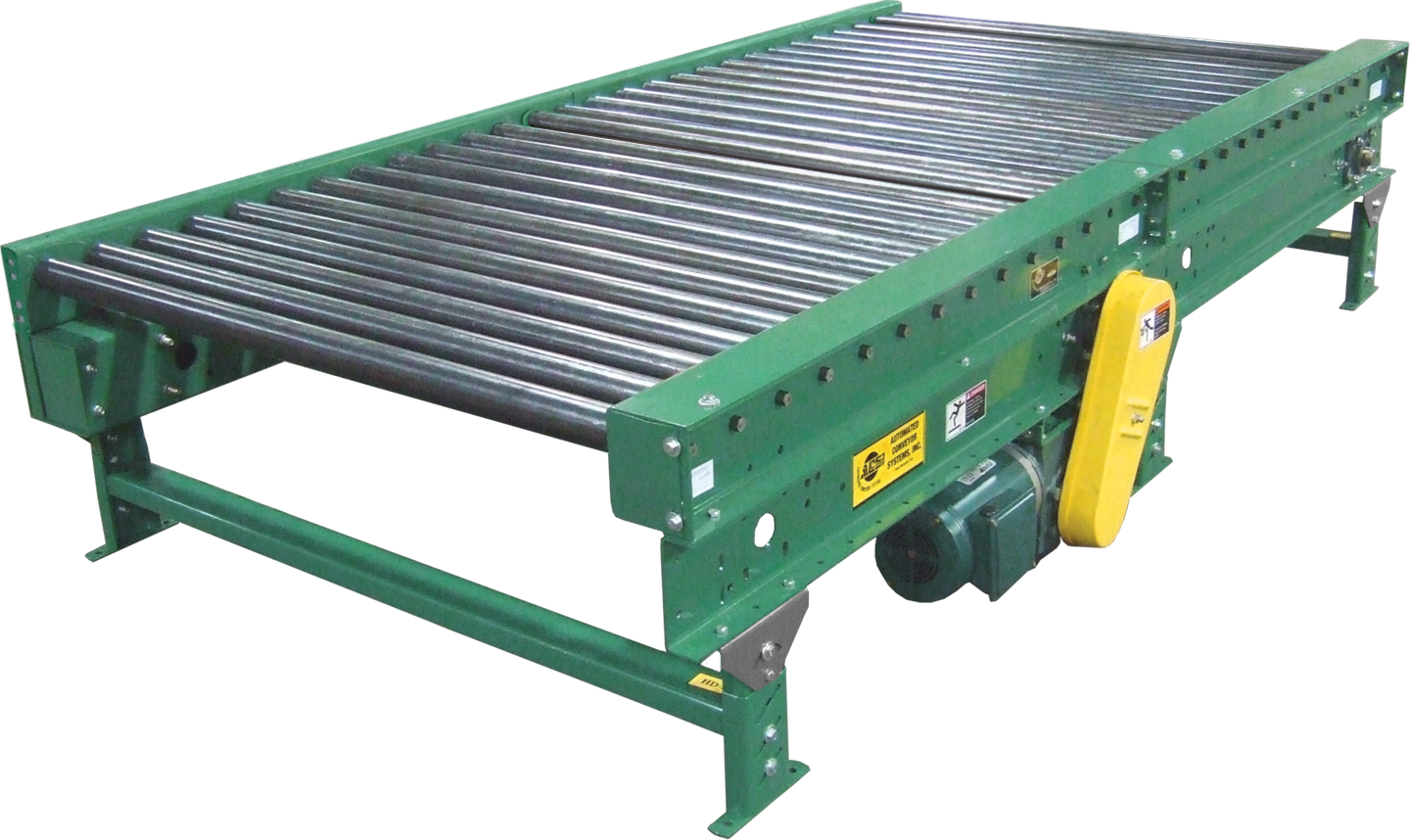

Model 251CDA
Heavy Duty Pallet Accumulating Live Roller
Sensor roller controlled mechanically operated pallet accumulation up to 4,000 lb.
View Specs →

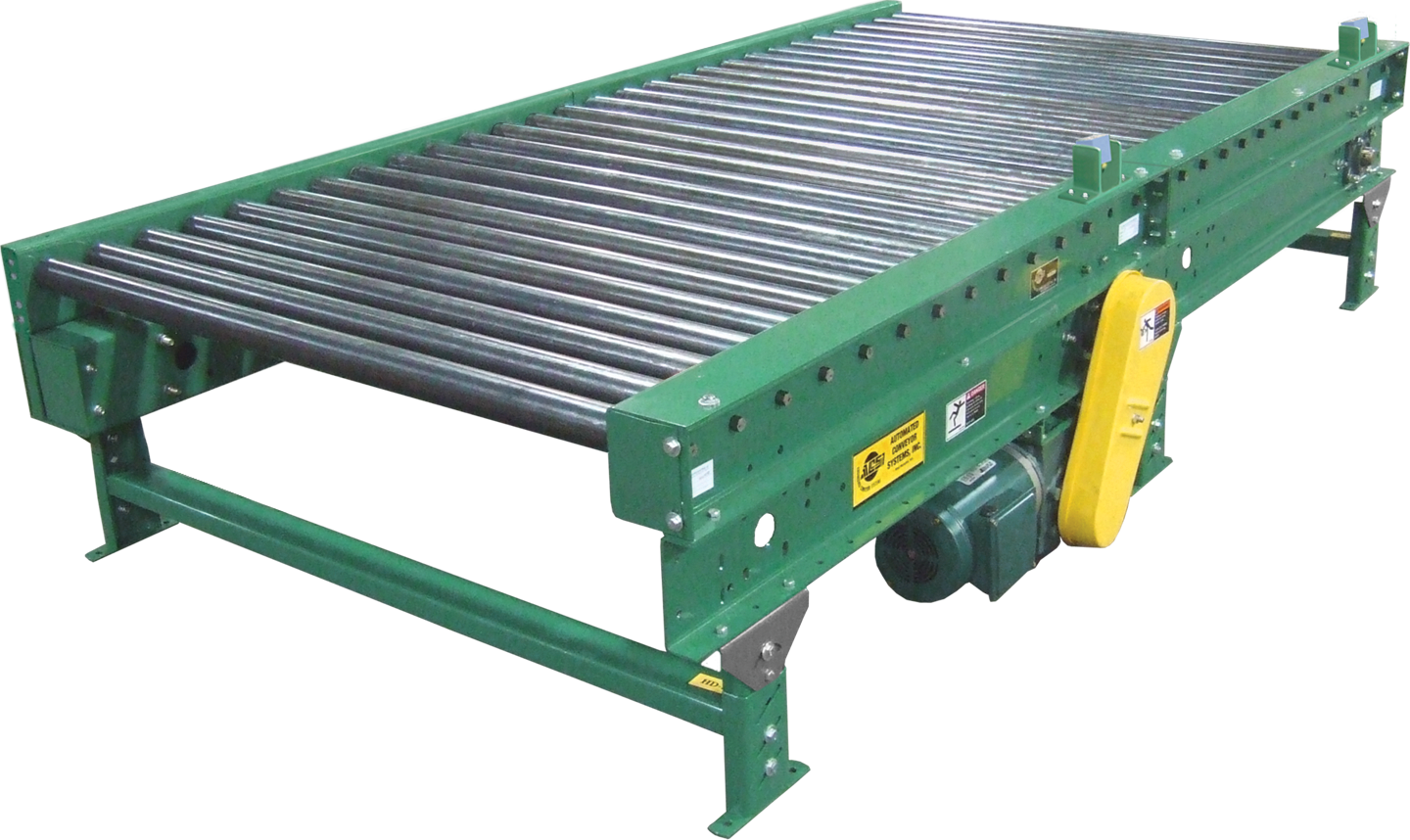

Model 251CDE
Heavy Duty Photo Eye Pallet Accumulating
Photo eye controlled mechanically operated pallet accumulation.
View Specs →

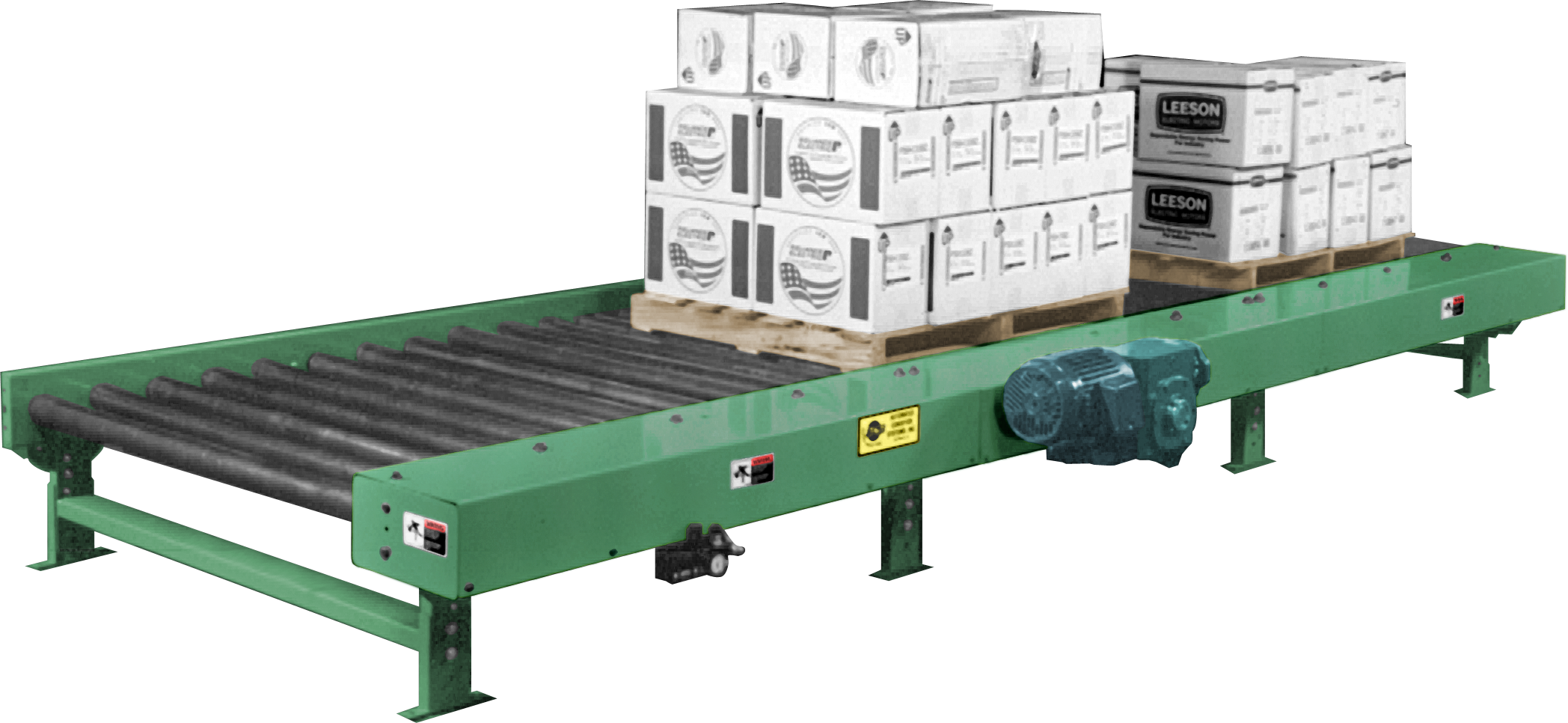

Model 251ACDA
Heavy Duty Air Operated Pallet Accumulating
Sensor roller controlled air operated pallet accumulation.
View Specs →

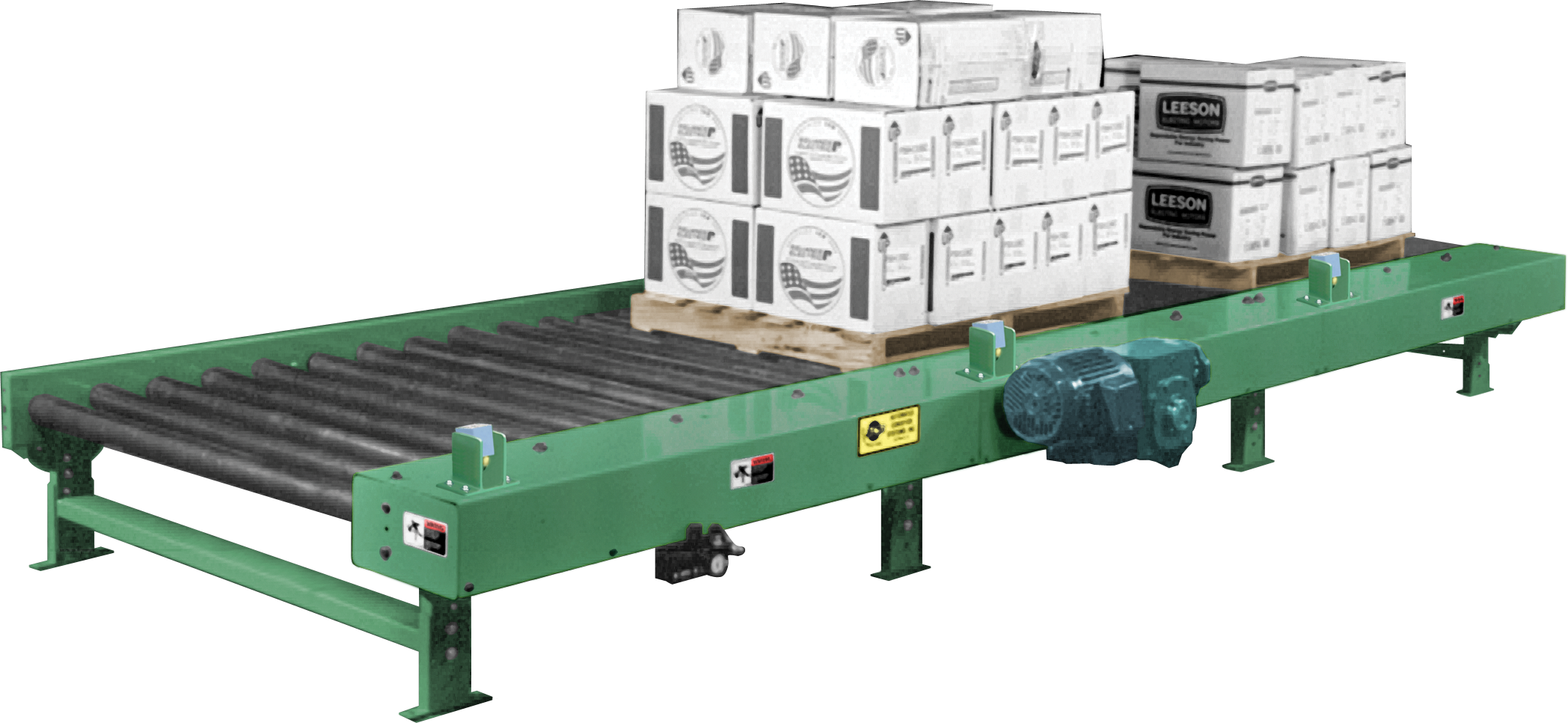

Model 251ACDE
Heavy Duty Air Operated Photo Eye Pallet
Air operated photo eye controlled pallet accumulation.
View Specs →CDLR Conveyor Selection
Compare CDLR Configurations.
CDLR stands for chain-driven live roller. ACSI manufactures CDLR conveyor models for medium-duty handling, heavy-duty pallet handling, curves, spurs, powered turntables, and pallet accumulation.
| CDLR Family | Typical Use | Primary Search Terms | Related Models |
|---|---|---|---|
| 22-Series CDLR | Medium-duty positive-drive live roller conveying. | CDLR conveyor, chain-driven live roller conveyor, medium duty roller conveyor. | 22CRR, 22CRRCT, 22CRRCTS, 22ACDE |
| 251 / 267 CDLR | Heavy-duty pallet conveyor, drums, oily conditions, positive drive. | CDLR pallet conveyor, heavy duty chain driven roller conveyor. | 251CRR / 267CRR, 251CRR-3 |
| CDLR Curves & Spurs | Directional changes and line merging/diverting for pallet and drum applications. | chain driven live roller curve, tapered roller conveyor curve. | 251CRRC, 251CRRCT, 22CRRCT, 22CRRCTS |
| 350-Series CDLR | Heavy-duty pallet and drum handling with larger rollers and rugged construction. | heavy duty CDLR conveyor, 3.5 inch roller pallet conveyor. | 350CRR |
| Pallet Accumulation CDLR | Controlled pallet queuing with mechanical or air-operated zones. | pallet accumulation conveyor, zero pressure pallet conveyor. | 251CDA, 251CDE, 251ACDA, 251ACDE |
Buyer Questions
CDLR Conveyor FAQs.
Answers to common questions about positive drive, heavy loads, pallet accumulation, and ACSI CDLR construction.
When is CDLR better than belt conveyor?
CDLR is usually preferred for pallets, drums, containers, and heavy loads where positive roller drive, rugged construction, and industrial durability are more important than a continuous belt surface.
Does ACSI manufacture CDLR conveyors?
Yes. Automated Conveyor Systems, Inc. manufactures CDLR conveyors in West Memphis, Arkansas for standard catalog applications and custom engineered conveyor systems.
Can CDLR conveyors accumulate pallets?
Yes. ACSI offers heavy-duty pallet accumulating conveyor models that use chain-driven live roller construction with mechanical or air-operated zone control.
CDLR Conveyor Application Review
Start with the Load and Roller Support.
Share the load dimensions and weight, bottom condition, roller support requirements, rate, accumulation needs, direction changes, and layout. ACSI manufactures the conveyor equipment, and our distributors provide system integration and installation.
