Roller Conveying Surface
Driven rollers support compatible cartons, totes, and unit loads with stable bottoms.
Belt Driven Live Roller Conveyors
Belt Driven Live Roller Conveyors.
V-belt driven live roller conveyors for light and medium duty product handling, including minimum-pressure accumulation, zero-pressure accumulation, curves, and spurs.
10 Models
Select Your Belt Driven Model.
ACSI belt driven live roller conveyors provide controlled movement for cartons, totes, and packaged goods. Choose from accumulating straight beds, photo-eye controlled accumulation, curves, and spur configurations.
Accumulating Straight Conveyors
Model 138CAP
138CAP – Light Duty Minimum Pressure Accumulating Live Roller
Light duty minimum-pressure accumulating live roller conveyor for cartons, tote pans, and controlled product staging.
View Specs →
Model 190CAP
190CAP – Medium Duty Minimum Pressure Accumulating Live Roller
Medium duty minimum-pressure accumulating live roller conveyor for product staging with reduced back pressure.
View Specs →

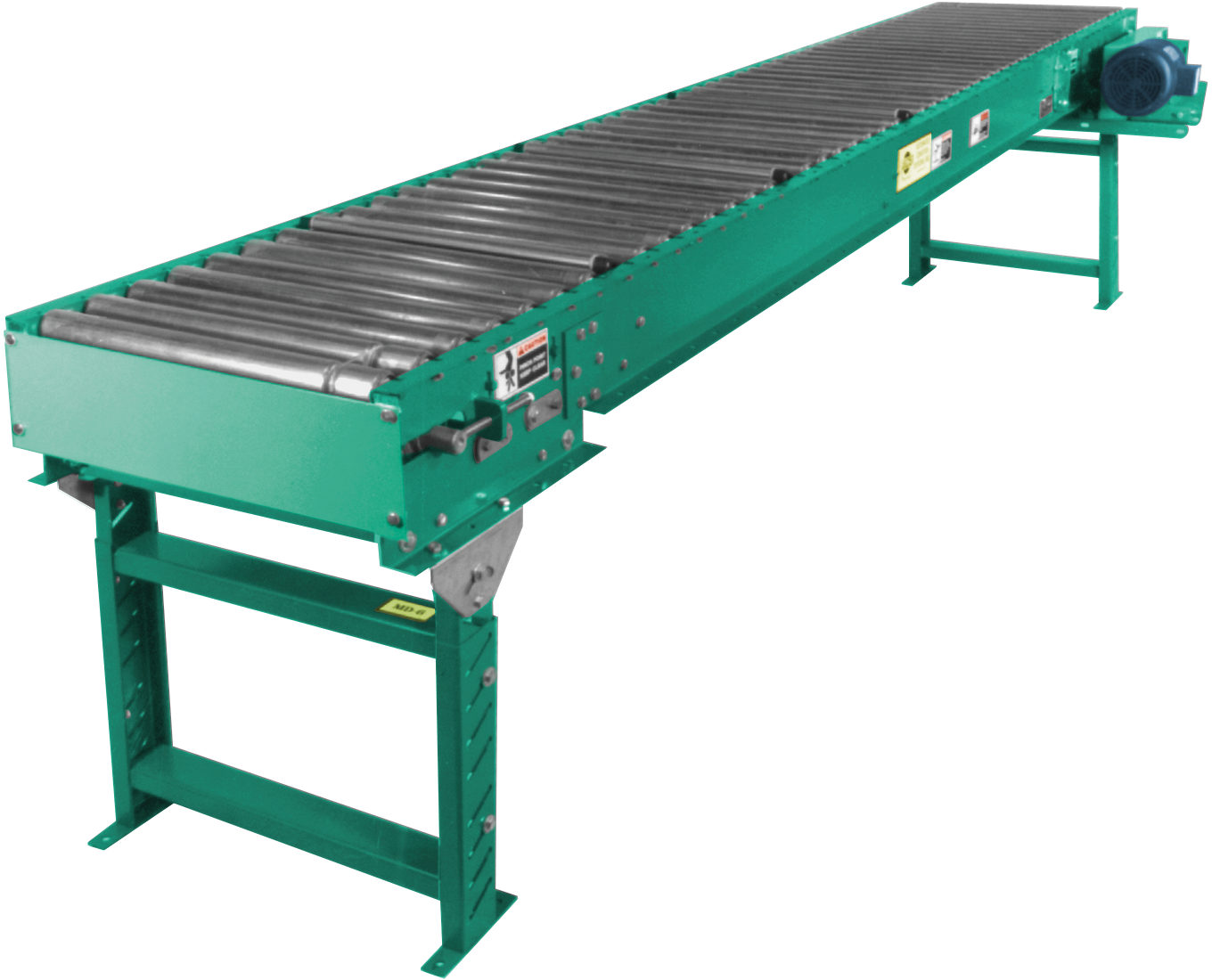

Model 190ZPA
190ZPA – Medium Duty Zero Pressure Accumulating Live Roller
Zero-pressure belt driven live roller accumulation for controlled product spacing and zone-based accumulation.
View Specs →
Model 190ABE
190ABE – Photo Eye Accumulating Live Roller
Photo-eye controlled belt driven live roller conveyor for automatic accumulation and product flow control.
View Specs →Curves and Spurs
Model 138CLR
138CLR – Light Duty V-Belt Driven Live Roller Curve
Light duty V-belt driven live roller curve conveyor for routing product around turns.
View Specs →
Model 138CLRS
138CLRS – Light Duty Curve Spur
Light duty curve spur for diverting product off a live roller curve.
View Specs →Model 138CLRSS
138CLRSS – Light Duty Straight Spur
Light duty straight spur conveyor for right-angle product diversion.
View Specs →

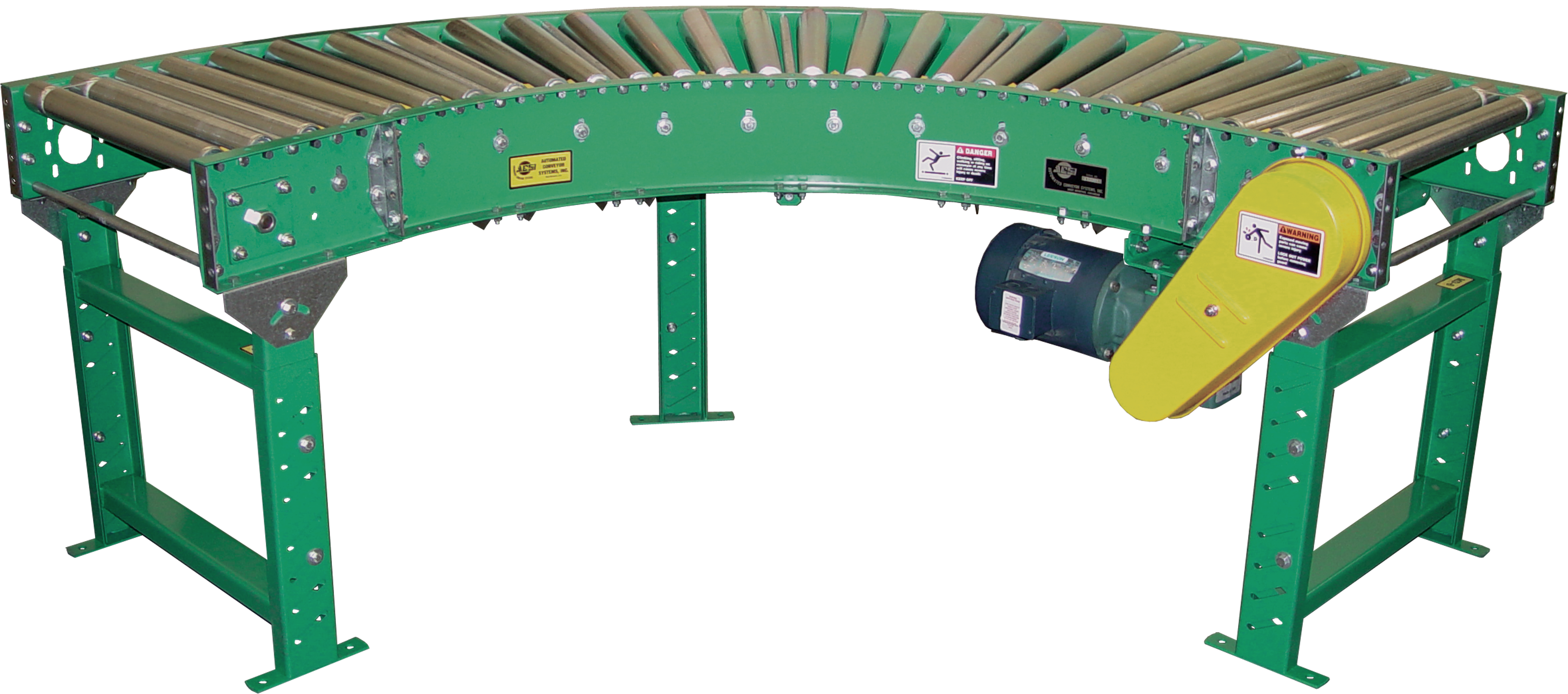

Model 190CLR
190CLR – Medium Duty V-Belt Driven Live Roller Curve
Medium duty V-belt driven live roller curve conveyor for powered product routing.
View Specs →
Model 190CLRS
190CLRS – Medium Duty Curve Spur
Medium duty curve spur conveyor for diverting product from live roller curves.

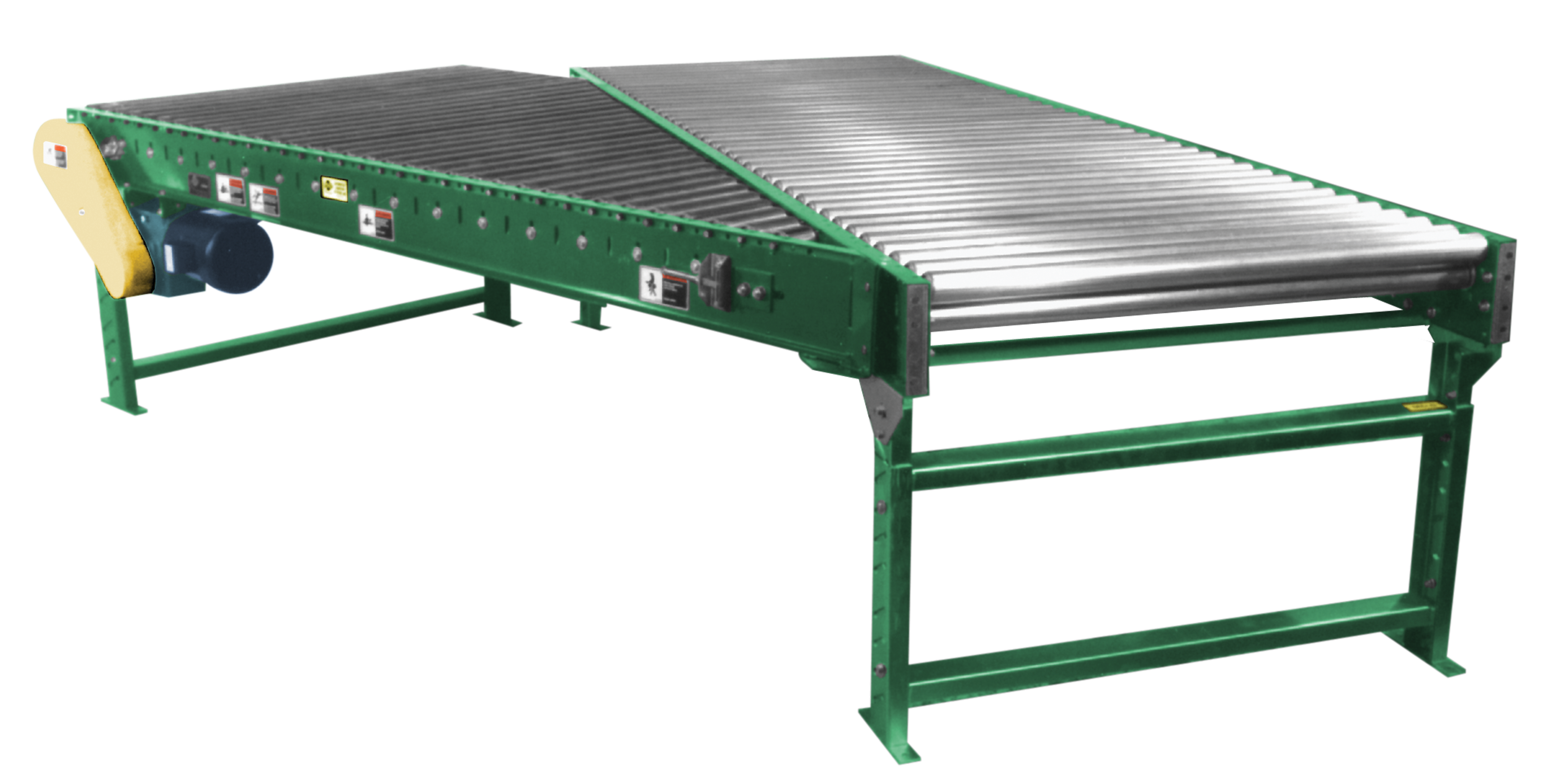

View Specs →Model 190CLRSS
190CLRSS – Medium Duty Straight Spur
Medium duty straight spur conveyor for powered right-angle product diversion.
View Specs →Application NoteBelt driven live roller conveyors are commonly used for packaged product flow, merge/divert layouts, and accumulation where controlled movement and product protection are important. Request application help →
The Fundamentals
What Is a Belt-Driven Live Roller Conveyor?
A belt-driven live roller conveyor powers conveying rollers from a belt beneath the roller surface. Compatible cartons, totes, cases, and other unit loads ride directly on those driven rollers rather than on a continuous carrying belt.
ACSI belt-driven live roller models cover light- and medium-duty accumulation as well as V-belt-driven curves and spurs. This lets a conveyor layout transport, queue, turn, merge, or branch compatible products while maintaining a roller conveying surface.
The correct model depends on product weight and bottom condition, roller support, route, accumulation method, queue length, rate, controls, and operating environment. Heavier loads or more positive-drive requirements may point to chain-driven live roller conveyor.
Accumulation Choices
Choose minimum-pressure or zero-pressure designs based on acceptable product contact.
Curves and Spurs
Light- and medium-duty V-belt-driven sections support direction changes and branching.
Application-Specific Duty
Match the 138- or 190-series platform to product, load, rate, and layout requirements.
Selection Guide
Compare Belt-Driven Configurations.
Begin with duty class, routing, and whether products may contact one another while queued.
Minimum-Pressure Accumulation
Controlled light contact can be acceptable for sturdy, consistently shaped products.
Models: 138CAP and 190CAP
Zero-Pressure Accumulation
Zone control lets compatible products queue without contact pressure.
Models: 190ZPA and 190ABE
Curves and Spurs
Route or branch compatible unit loads with light- or medium-duty V-belt-driven sections.
Models: 138CLR and 190CLR families
Buyer Questions
Belt-Driven Live Roller FAQs.
Answers to common questions about roller drive, accumulation, routing, and heavier-duty alternatives.
What is a belt-driven live roller conveyor?
A belt-driven live roller conveyor uses a belt drive beneath the conveying rollers to power compatible cartons, totes, and unit loads along the line.
What is the difference between minimum-pressure and zero-pressure accumulation?
Minimum-pressure accumulation permits controlled light product contact. Zero-pressure accumulation controls zones so products can queue without contact pressure.
Can belt-driven live roller systems include curves and spurs?
Yes. ACSI offers light- and medium-duty V-belt-driven curve, curve-spur, and straight-spur models for routing and branching compatible unit loads.
When should I consider CDLR instead of belt-driven live roller?
Chain-driven live roller is generally evaluated for heavier loads and applications that require more positive roller drive. Product, load, support, duty cycle, and environment determine the final choice.
Belt-Driven Roller Application Review
Start with the Product and Flow.
Share the product dimensions and weight, bottom condition, rate, route, curves and spurs, accumulation method, queue length, controls, and operating environment. ACSI manufactures the conveyor equipment, and our distributors provide system integration and installation.
