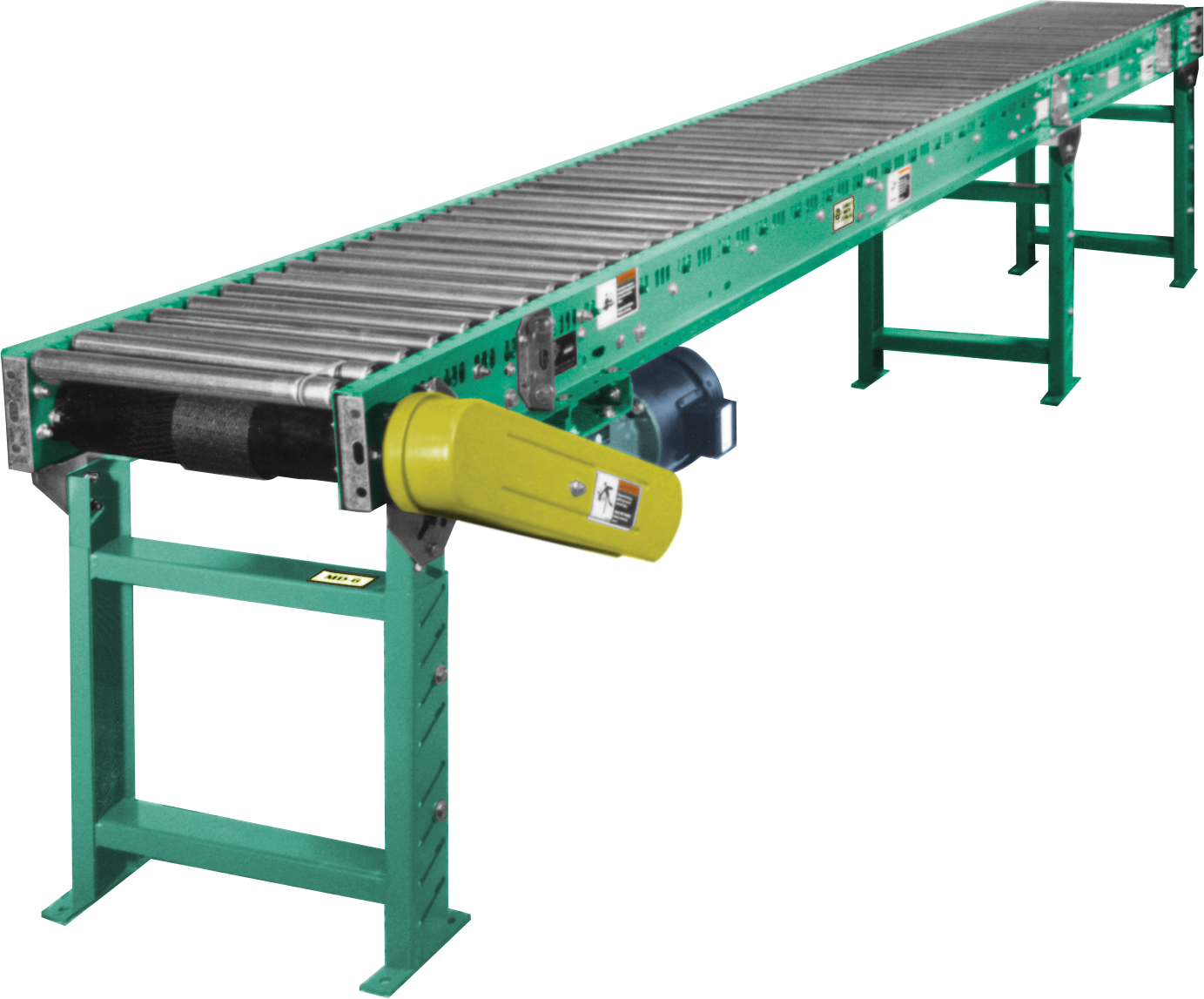

Model “138CAP”
Light Duty Minimum Pressure Accumulator
Applications / Features
- ►Accumulates light boxes, tote bins, baskets, etc.
- ►Minimum back pressure accumulation
- ►Economical
Online Resources
Light Duty Minimum Pressure Accumulator
Standard Specifications
Driving Belt — 4″ wide Black PVC 120 belt.
Bed — Roller bed width between frames, 10″, 13″, 16″ and 22″. 5-¹/₂″ x 1-¹/₂″ x 12 gauge powder painted formed steel channel frame, bolted together with butt couplings and floor supports.
Tread Rollers — 1-³/₈″ diameter x 18 gauge galvanized tread rollers with ⁵/₁₆″ hex shafts on 1-¹/₂″ and 3″ centers. Safety pop-out design prevents damage to product or harm to personnel if caught between belt and tread rollers.
Pressure Rollers — 1-³/₈″ diameter x 18 gauge galvanized pressure rollers with ⁵/₁₆″ hex shafts on 6″ centers.
X-Bracing — Frame squaring device supplied on conveyors 40 feet and longer on every other bed section. X-bracing insures good product and belt tracking.
Tail Pulley — 4″ diameter crowned with ¹³/₁₆″ shaft.
Drive Pulley — 4″ diameter crowned and fully lagged, with 1-³/₁₆″ diameter shaft. Located at infeed end of conveyor.
Snub Roller — 2″ diameter adjustable, located directly behind drive and tail pulley.
Return Idler — 1.9″ diameter, adjustable, on 10′0″ centers.
Floor Supports — 30″ to 44″ adjustable from floor to top of rollers. One support supplied at each end of conveyor and at each bed joint.
Take-Up — Located at discharge end of conveyor, provides 12″ of belt take-up.
Bearings — Sealed, prelubricated with cast iron housings.
Speed Reducer — Heavy duty worm gear reducer.
Motor — ¹/₂ HP 230/460-3-60 TE motor.
Belt Speed — 60 FPM constant.
Capacity — 100 pounds per foot. Not to exceed Load Capacity Chart.
Optional Equipment
Center Drive — Mounted below conveyor bed section. Can be placed almost anywhere in conveyor length.
Side Mounted Drive — End drive mounted to side of conveyor section. Specify side. Minimum elevation — 8″.
Guard Rails — Adjustable channel, continuous channel, or solid steel guard rails available.
Floor Supports — Lower or higher supports available.
Ceiling Hangers — ¹/₂″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Motor — Single phase, energy efficient, explosion proof, etc. Other HP available.
Belt Speed — Constant and variable belt speeds available.
Electrical Controls — Magnetic starters and push button stations; manual motor starters with overload protection, others.
Confirm the Model Fits Your Application.
Share the product and load data, conveyor dimensions, speed, throughput, controls, layout, and operating conditions. ACSI manufactures the equipment, and our distributors provide system integration and installation.
